Key Features

  • Maximum number of blades within the housing at one time without affecting throughput
  • Minimum clearance between rotor tips and body
  • Good throat opening at valve entry allowing high pocket filling efficiency
  • Light-weight minimises loading on connected equipment
  • Compact with direct drive, right-angled gearbox accommodates installation space constraints
  • Cost competitive ideal for integration into systems
  • Inboard bearings for increased shaft rigidity
  • Lip seals provide effective containment with reduced maintenance requirements
  • Precision machining of components
Download Brochure Product Video Enquire now

Rotolok introduced a low cost solution to dust collector valve needs. The Dust Collector Valve is a lighter duty option for standard dust collection applications.

Constructed with a robust cast iron body and cast iron end covers. Bearings are inboard and shafts are sealed with lip seals. All valves are direct driven with a right angle gearbox and motor.

These valves have been engineered and designed solely as a low cost alternative for applications with pressure differentials of 3 psi or less. Available in 150, 200, 250 and 300mm round and square inlet sizes.

The general market place covers Cyclones, Bag Houses and Gravity Feed applications with pressures around +/- 3 psi

  • Body

    Cast Iron Precision Bored
    Standard: Universal flanges to match Square or Circular connections
    Heavy Duty: Robust with either Square or Circular flanges

  • End Covers

    Cast Iron Precision Machined and Spigot Located into Valve Body

  • Rotor

    Fabricated Mild Steel Closed (Shrouded) Type Fully Machined

  • Bearings

    Ball Type Rigged Inboard Sealed for Life

  • Seal

    Shaft Seals Rubber Lip Type

  • Drive

    Motorised Worm Box Shaft Mounted on Rotor and Fitted with Standard I.E.C. Motor TEFC 3PH/50Hz Flange Mounted to Worm Box

  • Valve Speed

    Standard – 28 RPM with 50Hz supply
    Heavy Duty – 23 RPM with 50Hz supply

All dimensions are in mm unless otherwise stated

ROUND DRILLING SQUARE DRILLING
SIZE A C D E F H B O P Q B O P T U kW WEIGHT (KG) ltr/rev
150 150 10 250 317 139 289 285 8 22 241 250 12 12 3 70 0.37 40 2.2
200 200 12 310 347 169 289 343 8 22 298 300 12 12 3 90 0.37 60 6
250 250 12 380 415 199 337 406 12 25 362 360 12 14 3 108 0.55 92 12
300 300 14 465 445 229 337 485 12 25 432 440 12 18 3 128 0.55 144 21

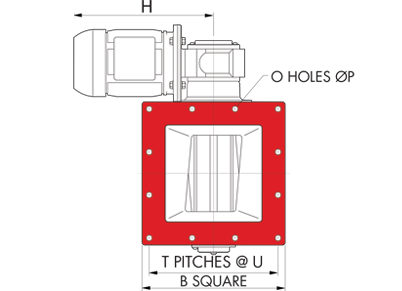

Dust Collector Valve Diagram Dust Collector Valve Technical Drawing Dust Collector valve Square Inlet
